Ammonia Engine Generator

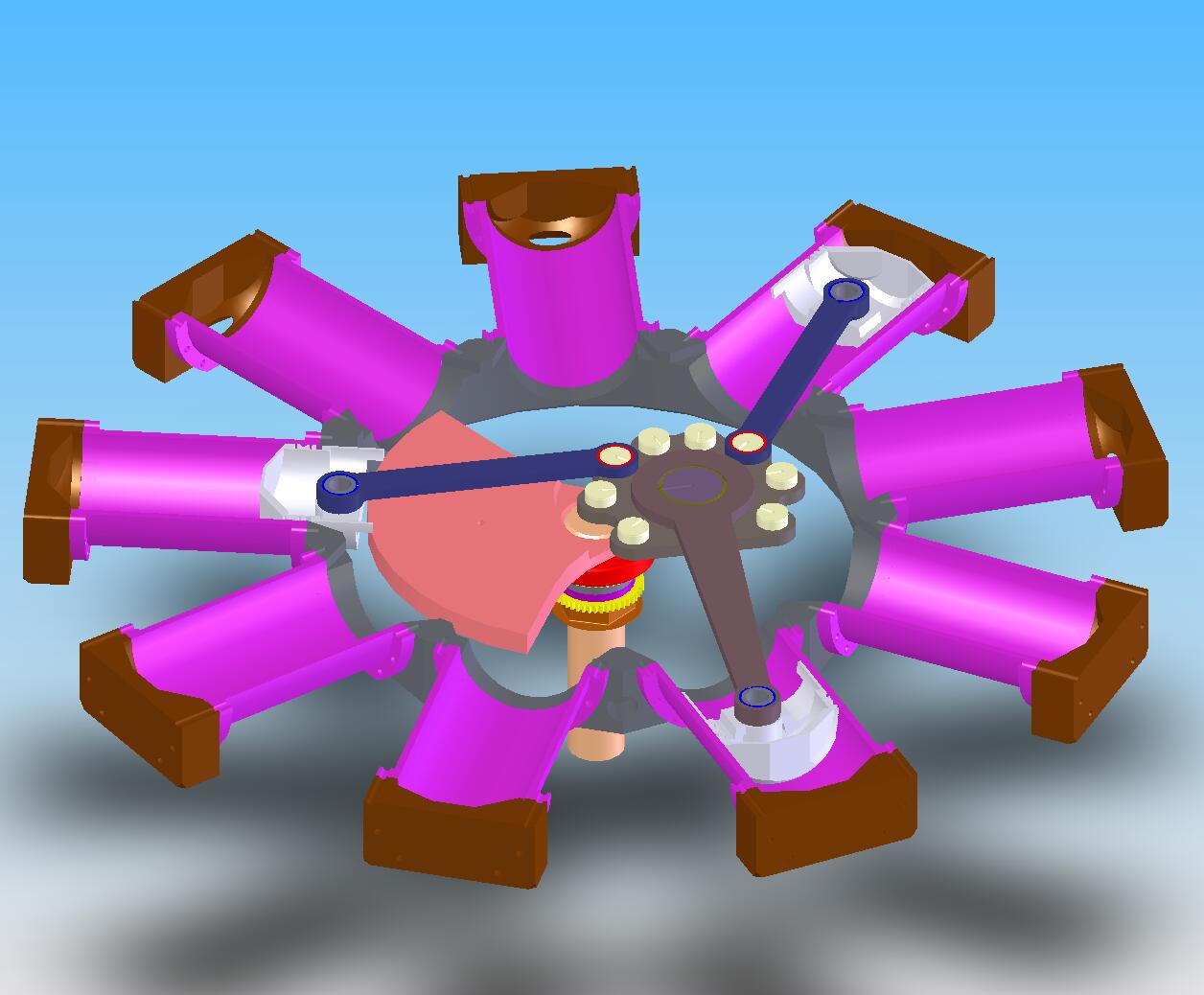

This image shows the engine cut-away thru the centerline..

The crankshaft is at 80 degrees, piston #7 is at the bottom of it's stroke.

The exhaust port for cylinder #5 (rear) is clearly visible.

The cylinder bores are 4.25" and the stroke is 6.375" giving ~90.5 cu.in per cylinder and almost 814 cu.in. displacement for all 9.


...............

...............
