Ammonia Engine Generator

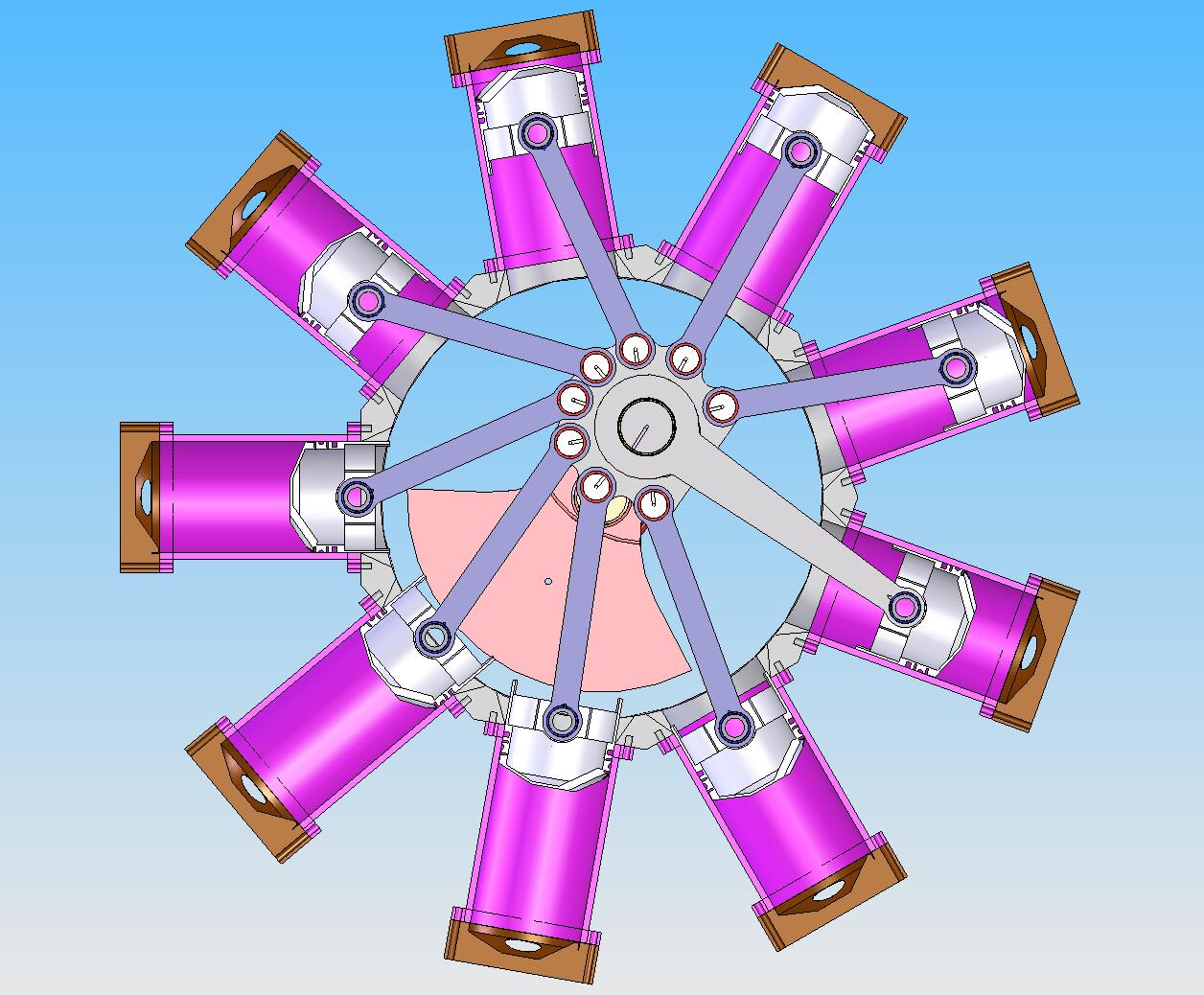

This image shows all 9 pistons and rods.

The crankshaft is still at 80 deg, piston #3 is at TDC and #7 is at BDC

Cylinders 8,9,1,2 are producing power, #3 at TDC will begin to intake hot gas

Cylinders 4,5,6 are exhausting, #7 at BDC will begin exhausting cold vapor, liquid and gas.
