Ammonia Engine Generator

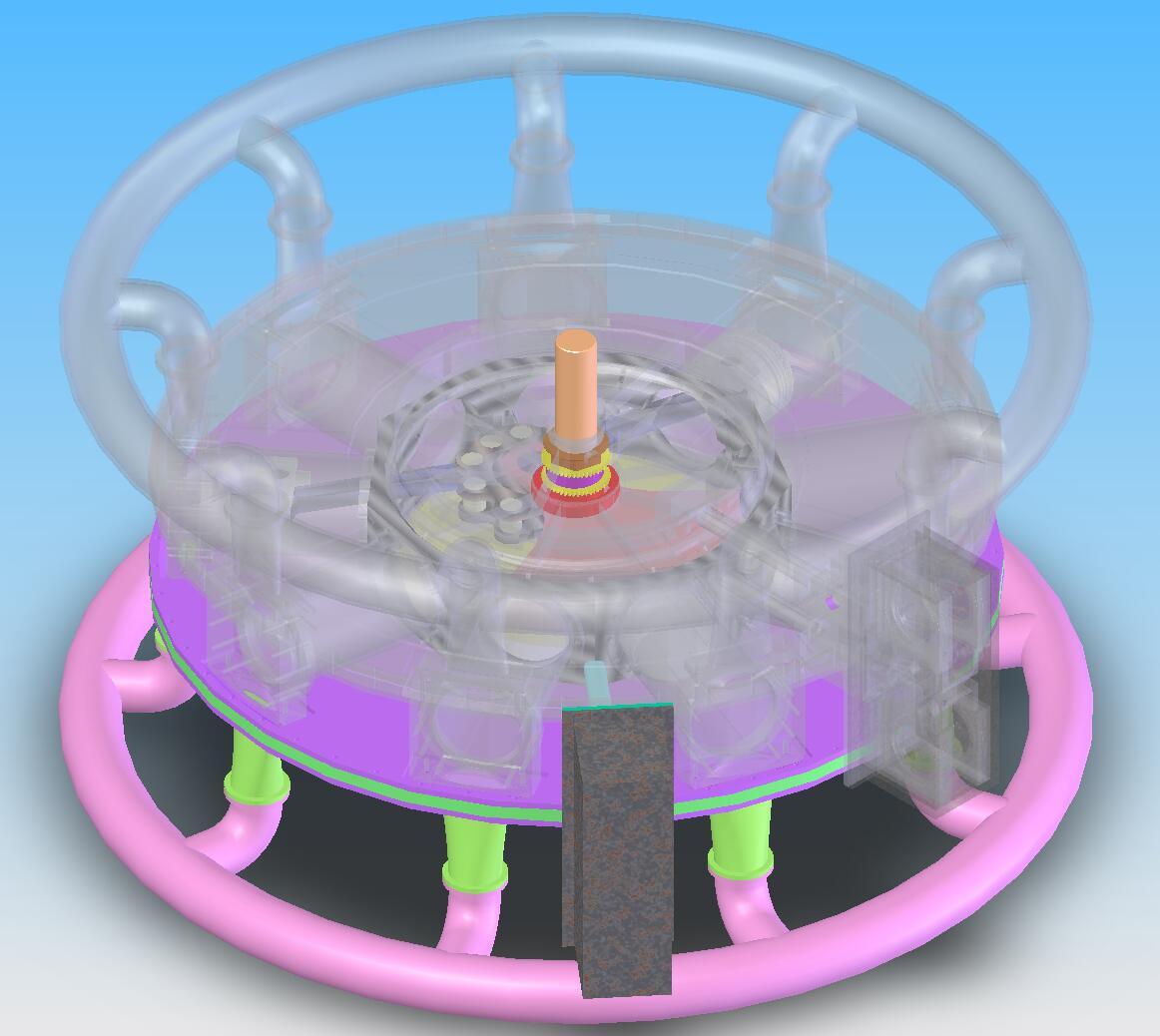

This image shows the engine with a semi-transparent top half.

The crankshaft (orange) accepts the flywheel SAE (8 sizes 6.5 to 21) or Delco (3 sizes 12.75 to 17.75)

You can identify the pistons in cylinders 1,4,7 as well as the master rod and crankshaft counterweights.

The rectangular enclosures house the valve control mechanism, which are driven and synchronized by the yellow gears on the crankshaft.

The diameter of the bustle pipe is just under 4ft. and the height is just under 2 ft.


...............

...............
