Military

All this hardware fits into a 20 foot container, for deployment by the military to provide solar power for fixed operations

This is a 40kW system that requires no fuel, and virtually no maintenance.

System can be deployed by 2 men in just a few hours.

Features and Options:

• additional panels to increase the peak solar power
• additional storage spheres to increase standby power levels and or standby time.
• multi-fuel boiler to provide continuous on demand power.
• engine coolant / exhaust heat-exchanger, (can add 20% to 100% of prime rating)
• 400 Hz generators can be supplied
• software for complete system diagnostics will run on any PC or Mac
• one button startup
• ability to combine multiple parallel units for higher power demands
• automatic line voltage & phase synchronization
• anti-islanding circuitry standard, system can back-feed utility power lines

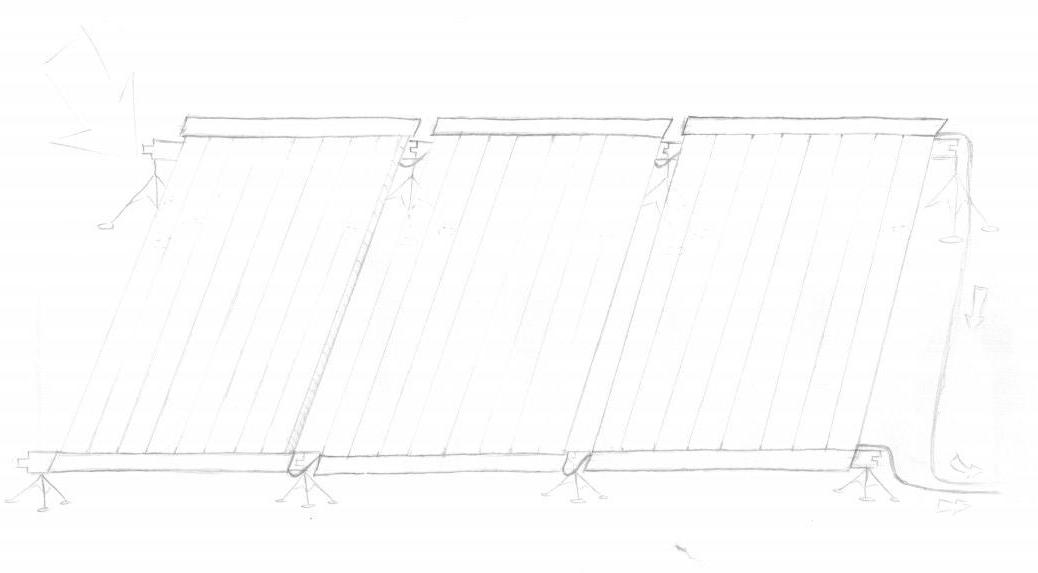

9 Panels on tripods (3 shown) each panel is 8 ft x 21ft

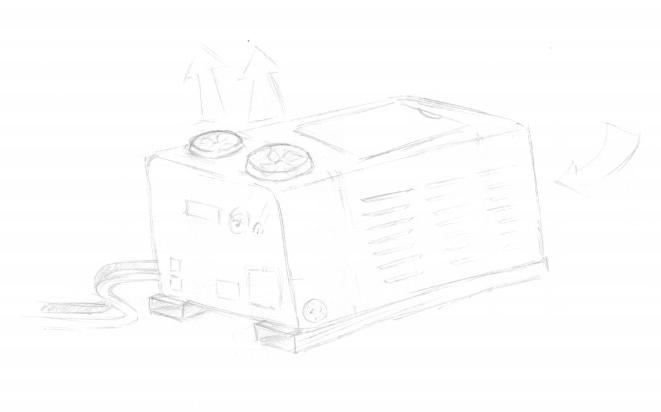

1 Main Generator ~ 5ft x 5 ft x 7 ft ( skid mounts shown, wheeled trailer optional)

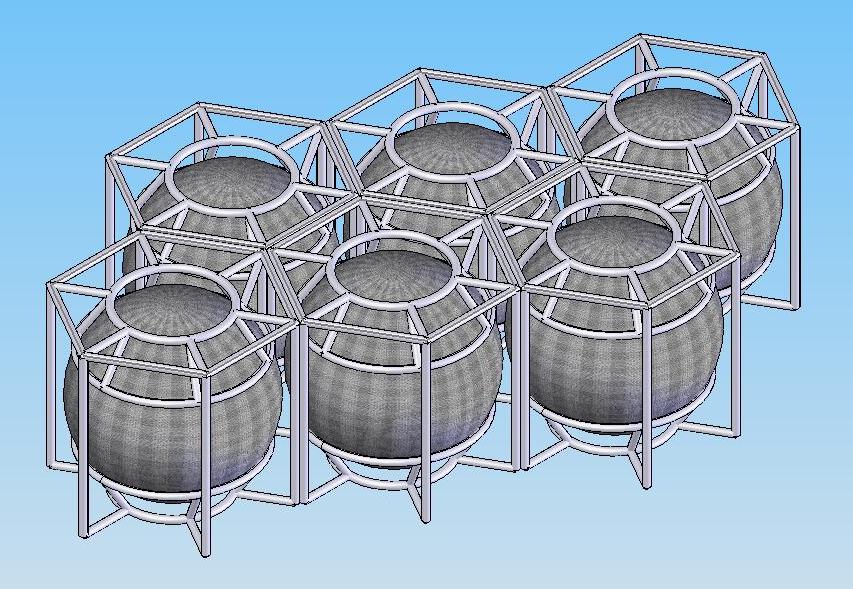

6 Storage Spheres ( each sphere is ~ 48 in. diameter )

...............

...............
